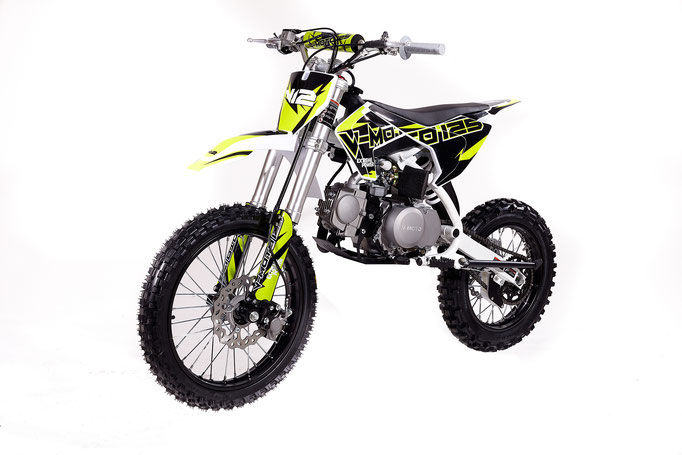

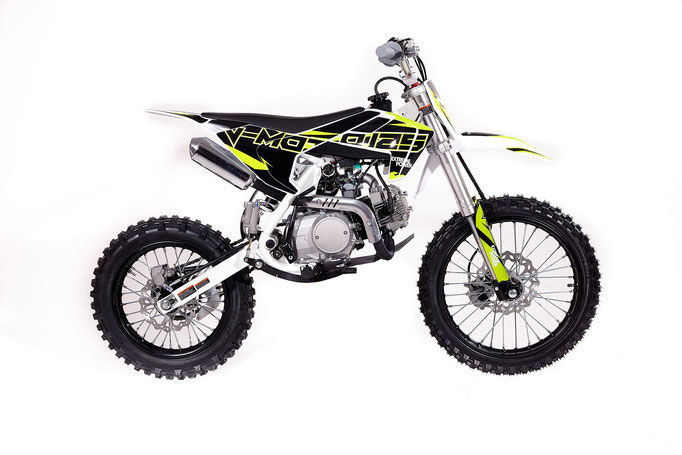

VITACCI DIRT BIKE V12 125cc
VITACCI DIRT BIKES V12 125CC
PRODUCT SPECS
Engine System
Engine Type
ZM125cc, Single Cylinder, 4-Stroke, Air Cooled
Displacement
124 ml
Max Power
6.2（1±10%）/7000（1±5%） kw/r/min
Max Torque
9.0(1±10%）/5000（1±5%） N.m/r/min
Compression Ratio
9.6:1
Shift Type
4-Gear Manual Shift
Start Type
Kick Start
Carburetor
PZ26 Jingke Carburetor
Drive Train
#428，14/41T
Size Data
L x W x H
64.1" * 29.5" * 41.3"
Wheel Base
42.3"
Tires
FT: 70/100-17 - RR: 90/100-14
Seat Height
32.6"
Ground Clearance
13.5
Fuel Capacity
3.5 L
Frame/Suspension/Brake/Wheel system
Frame
Cradle Type Steel Tube Frame
Front Fork
Non-Adjustable Inverted 700mm Forks, Travel - 4.3" , Tube - 1.2"
Rear Shock
Coil Spring shock - 10.8" , Travel - 1.6"
Swing-Arm
Steel - 14.9"
Handle Bar
Steel
Wheels
Steel 1.6 x 17" / 1.85 x 14" Rims, Cast Hubs
Front Brake
Single Piston Caliper, 210mm Disc
Rear Brake
Single Piston Caliper, 190mm Disc
Exhaust
Stainless Steel Header Pipe, Haxagon Aluminum Silencer
Packing and Loading
Packing Size
L 54" X W 15" X H 30"
N.W/KG
145.5 LBS
G.N/KG
161 LBS
