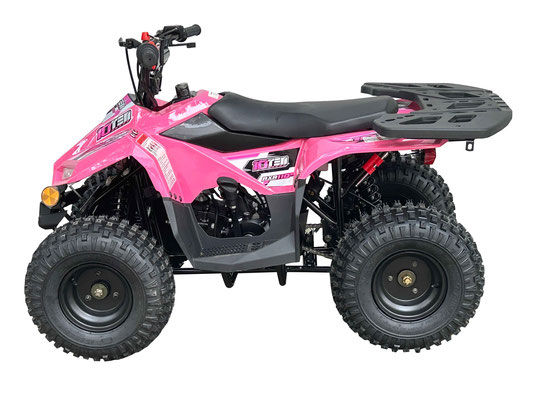

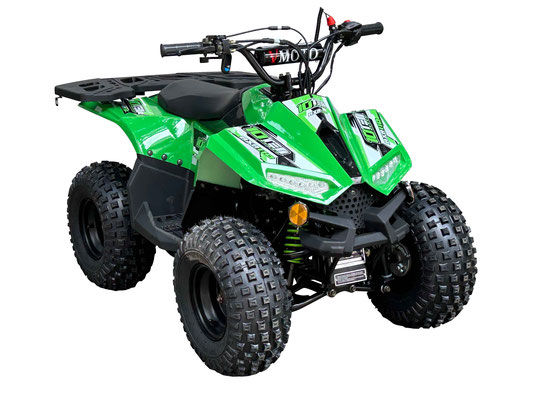

Vitacci ATV RXR 110cc

Vitacci ATV RXR 110cc

$1,150.00Price
SPECIFICATIONS:

ModelCY110ATV-9
Engine Type107CC, 4-stroke
Cooling modeair cooled
CylindersSingle cylinder
Bore×Strokeφ52.4×49.5mm
Max Torque6.9Nm/(6500r±500r)/min
Max Power4.8KW/(8000r±500r)/min
LgnitionCDI
Starting SystemElectric
Battery12V, 5Ah
ClutchAutomatic with reverse
TransimissionChain, rear wheel drive
Brakes Front/RearDrum/hydraulic disc
Tires Front/Rear16X8-7/16X8-7
Fuel Capacity2.2L plastic tank
WeightG.W./N.W.(216kgs/158kgs)
Wheelbase960mm
Dimensions1340X930X900mm
Height to Seat600mm
Loading Quantity135pcs/40´HQ
 EPA with carb
 Y6
Colors
Quantity

  • PRODUCT SPECS

    ENGINE
    Engine Make / Type     Air-Cooled SOHC 4-Stroke 176cc
    Top Speed    35MPH
    Lubrication Type    Pressure and Hybrid Splash Lubrication
    Max Torque     10N·m/6000r/min
    Compression Ratio     9.5:1
    Valve Configuration    2 Valve
    TRANSMISSION & DRIVE
    Drive Type    Fully Automatic
    Gears    CVT – F,N,R
    Clutching Type    Automatic Centrifugal Dry
    Drive line Type    Chain
    Starting System    Electric Start
    SUSPENSION
    Front Suspension    Single A-Arm
    Rear Suspension    Rear Single Shaft Swing Arm
    BRAKES, TIRES & WHEELS
    Front/Rear Brakes    Disc Brakes
    Front Tire    20×7-10
    Rear Tire    19×10-9
    Front/Rear Tread    820mm / 810mm
    MEASUREMENTS & DIMENSIONS
    ATV Dimensions     63'(L) x 41'(W) x 41'(H)
    Ground Clearance    5.9in
    Wheelbase    45in
