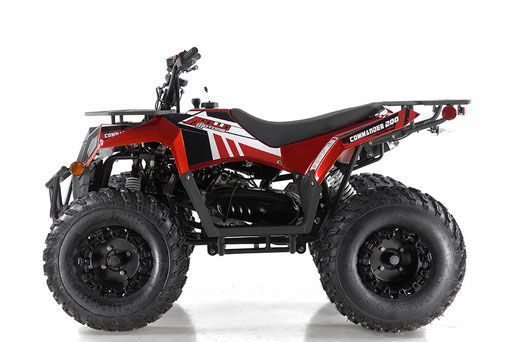

ATV COMMANDER 200cc EFI

Model name

COMMANDER 200 EFI

EPA Model

AGA-16

Vichel Class

G16+ class

Overall dimensions （L×W×H）

1670mm×1020mm×1100mm

Wheel base

1110mm

front wheel distance

815mm

rear wheel distance

790mm

ground clearance

135mm

Seat height

760mm

Curb weight

165kg

rated load mass

150kg

Max speed

60km/h

minimum turning radius

3000mm

maximum gradability

10°

front brake type

front  hydraulic brake

rear brake type

rear hydraulic brake

brake operation

Front hydraulic brake by hand , rear hydraulic brake by foot pedal

front rim

steel

rear rim

steel

front tire size

23×7-10

rear tire size

22×10-10

front tire air pressure

10P.S.I.

rear tire air pressure

10P.S.I.

transmission

Chain

Spark plug type

A7RTC

Fuel injector model type

 MEV1-080-B

Battery type

12V、9Ah

Tank volume

6L

packing size

1465mm×870mm×860mm

Net weight

160kg

Gross weight

188kg

Loadign quantity

57pcs/40’HQ

Transmission type

CVT，F- N-R

Engine type

4 stroke,Single cylinder , air cooling

displacement

174.4cc

Bore×Stroke

62mm×57.8mm

Max power

7.3kW/7500rpm

Max torque

10N.m/6000rpm

ignition

CDI

start

electric start

fuel grade

RQ-93

Lubrication

Pressure and splash lubrication

Engine oil grade

SAE15W/40
