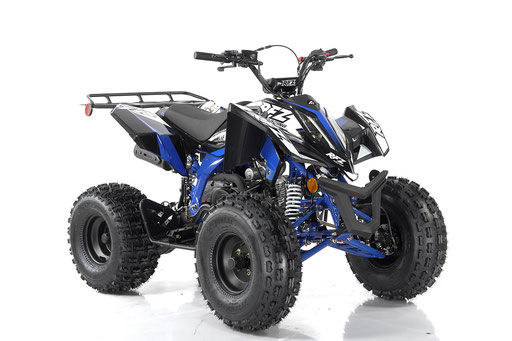

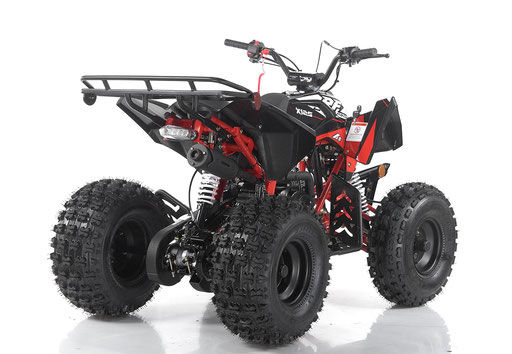

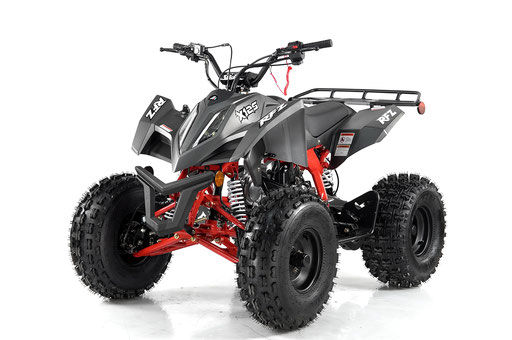

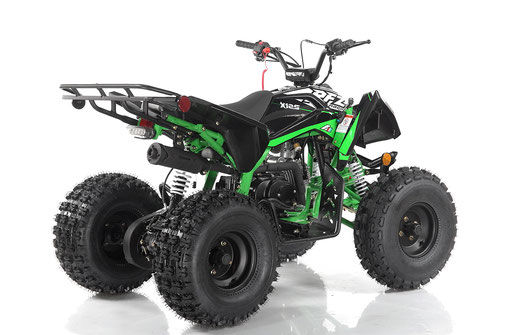

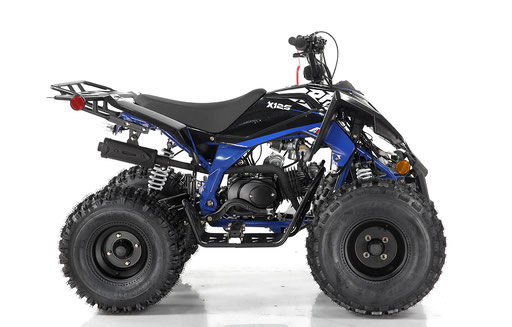

ATV FALCON X 125cc

Model name

AGA-12A

Vehicle Class

Y12+ class

Overall dimensions （L×W×H）

1495mm×970mm×1000mm

Wheel base

965mm

front wheel distance

795mm

rear wheel distance

680mm

ground clearance

125mm

Seat height

760mm

Curb weight

123kg

rated load mass

100kg

Max speed

55km/h

minimum turning radius

2500mm

maximum gradability

10°

front brake type

front  hydraulic brake

rear brake type

rear hydraulic brake

brake operation

Front hydraulic brake by hand , rear hydraulic brake by foot pedal

front rim

steel

rear rim

steel

front tire size

19×7-8

rear tire size

18×9.5-8

front tire air pressure

10P.S.I.

rear tire air pressure

10P.S.I.

transmission

Chain

packing size

1310mm×760mm×660mm

Net weight

121kg

Gross weight

135.5kg

Transmission type

Semi-automatic 1+R

Engine type

4 stroke,Single cylinder , air cooling

displacement

119.7cc

Bore×Stroke

52.4mmX55.5mm

Max power

5.5kW/7500rpm

Max torque

8.5N.m/5000rpm

ignition

CDI

start

electric start

fuel grade

RQ-93

Lubrication

Pressure and splash lubrication

Engine oil grade

SAE15W/40
