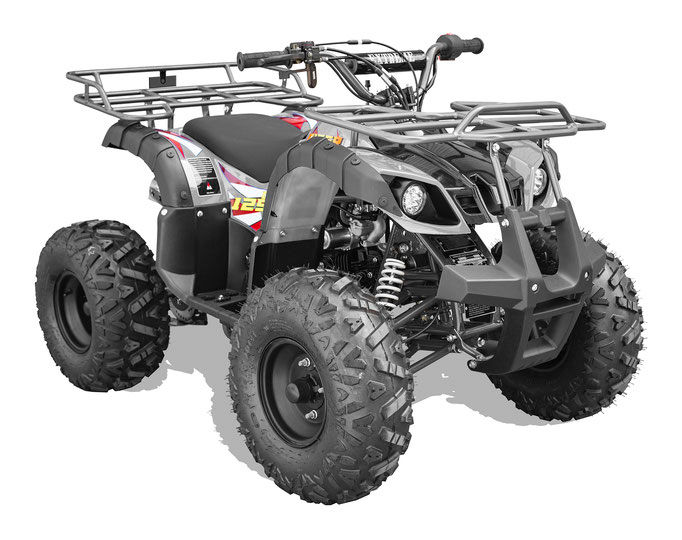

ATV RIDER 9 125cc

Engine Type    Single cylinder ,4 stroke ,air-cooled
Displacement    125cc（119.6）
Compression Ratio    9.6:1
MAX POWER OUT     5.5kW/8500r/min (kW/r/min)
Max Torque    6.9N.m/6500r/min (N.m/r/min)
Gear shift mode     One forwards and one reverse with hand gear shift
Carburetor     PZ20
Ignition    AC-CDI
Starting System     Electric
Transmission     CHAIN
Suspension / Front     Traverse Double-arm
Suspension / Rear    Non-independent suspension
Brakes / Front    Drum brake
Brakes / Rear    Disc brake
Tires and Rim/ Front    19X7-8    20F
Tyre and Rim/ Rear    18X9.5-8    25F
Dimension L x W x H    62" x 38" x 37"
Carton L x W x H     58" x 31" x 26"
Seat Height    27.5"
Wheelbase    37.7"
Front Wheel tracy    30.9"
Rear Wheel Tracy    26.3"
Fuel Capacity    2.2L
Net Weight    236LBS
Gross Weight     289LBS
Ground distance     5.5"
Max payload    143LBS
Payload of rack（Front/Rear）    F :22LBS/R :22LBS
